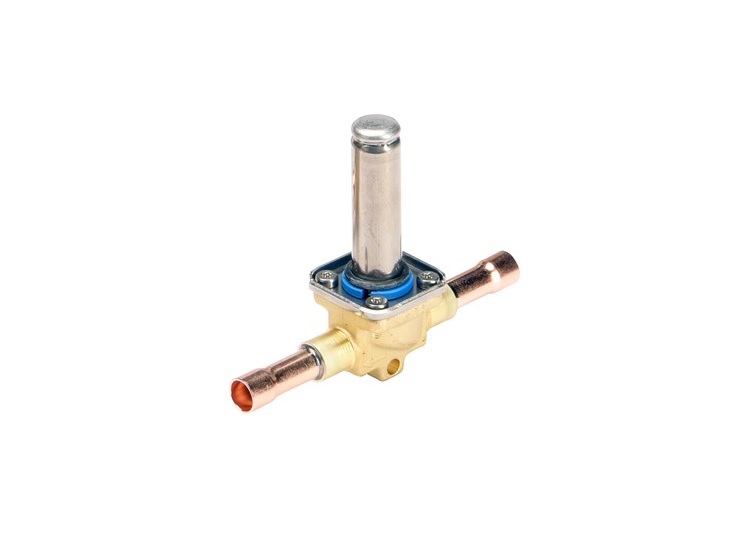

Solenoid valve EVR-6 1/2 solder Danfoss 032L1209

Gross weight: 0.24 kg
Net weight: 0.19 kg
EAN: 5702428952910
Actuator system [mm]: 13.5 mm
Ambient temperature: -40 - 80 °C
Ambient Temperature Range [°F] [Max]: 175°F
Ambient Temperature Range [°F] [Min]: -40°F
Approval: UL
EAC
LLC CDC EURO-GERMAN
Coil: No
Cv value [gal / min]: 1.15 gal / min
Direction: Straightway
Function: NC
Identical product: 032L7308
Inlet Connection Type: SOLD, ODF
Inlet Size [inch]: 1/2 inch
Kv value [m³ / h]: 1 m³ / h
Option for manual operation: No
Max. Working pressure [bar]: 45.2 bar
Max. Working Pressure [psig]: 655 psig
MaxOPD [bar] 10W AC: 38 bar
MaxOPD [bar] 20W DC: 28 bar
MaxOPD [bar] coil BJ / BX: 38 bar
MaxOPD [psi] 10 W AC: 550 psi
Max OPD [psi] 20W DC: 406 psi
MaxOPD [psi] coil BJ / BX: 550 psi
Medium temp. note: defrost max 130°C / 265°F
Average temperature range [°C] [Max]: 105°C
Average temperature range [°C] [Min]: -40°C
Average Temperature Range [°F] [Max]: 221°F
Average temperature range [°F] [Min]: -40°F
MinODP [bar]: 0.03 bar
MinODP [psi]: 0.44 psi
MOPD [bar / psi]: ROLLABLE DEPENDENT
MWP [bar] PED compliant: 49 bar
Opening size [mm]: 6 mm
Outlet Connection Type: SOLD, ODF
Outlet Size [inch]: 1/2 inch
Parts Program name: EVR
Product accessories: Solenoid valve accessories
Product family name: EVR v2
Product group: Solenoid valves
Product name: Solenoid valve
Refrigerants: R1234yf, R125, R134a, R152a, R22, R290, R32, R404A, R407A, R407C, R407F, R410A, R417A, R448A, R449A, R450A, R452A, R600, R600a, R513A, R75, R42A, R42A, R410 R422B, R422D, R438A, R444B, R447A, R449B, R454C, R455A, R463A, R513B, R515A, R515B, R516A, R442A, R447B, R512A, R45
Service-friendly: spare parts for solenoid valve
Type: EVR 6
Type designation: Solenoid valve, Solder
UL approved refrigerants: R125, R134a, R152a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R447A, R447B, R2A, R45, R45, R447B R463A, R507A, R512A, R513A, R513B, R515A, R515B, R516A
Valve operation: SERVO-DIAPHRAGM
