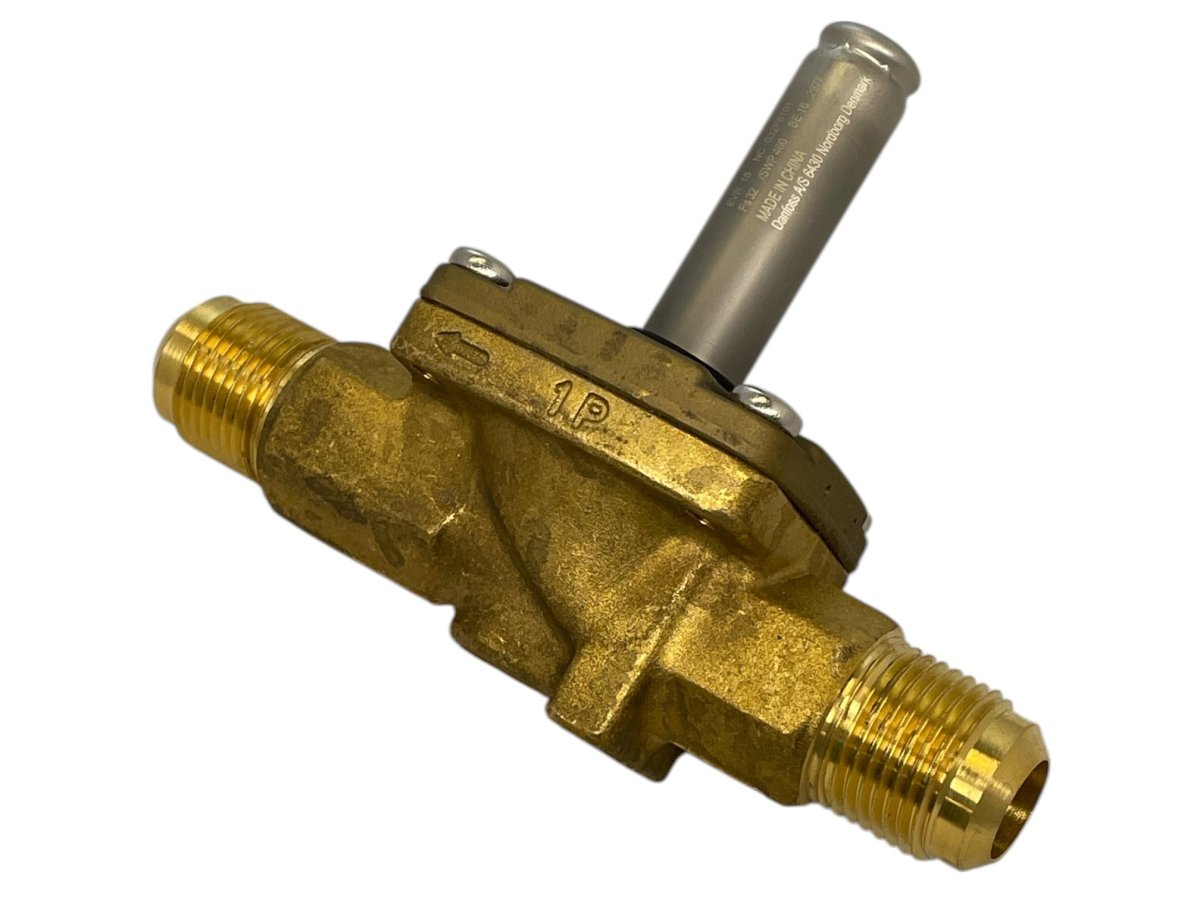

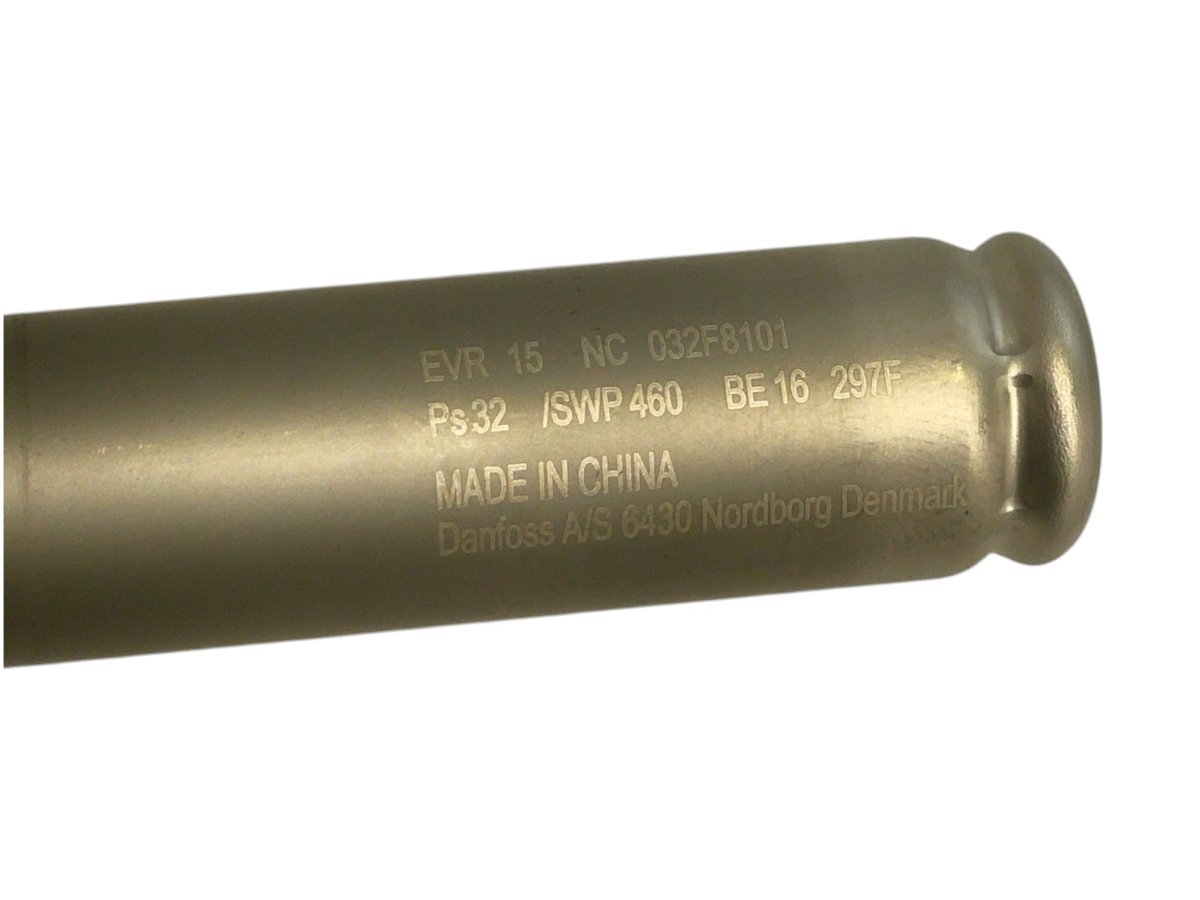

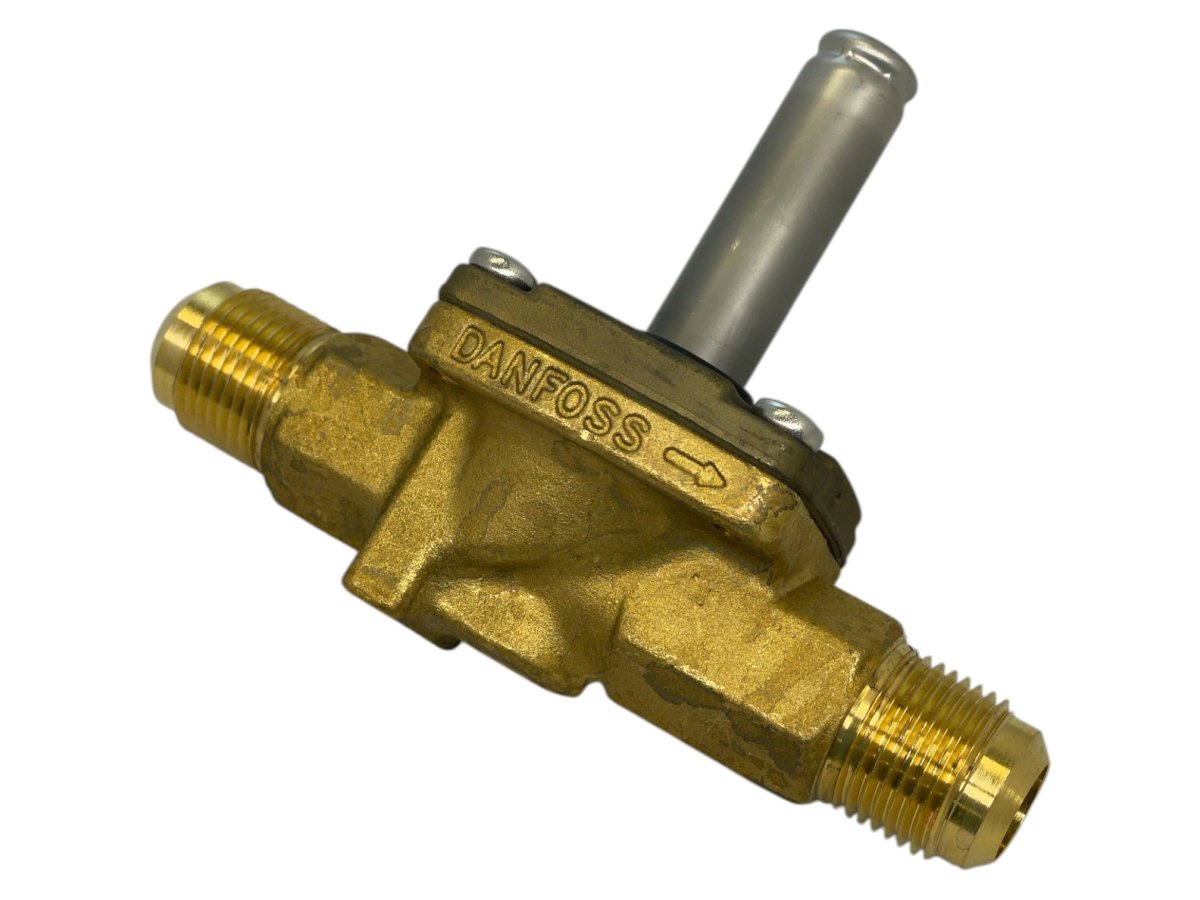

Solenoid valve EVR 15, Flare, 5/8 in, 16 mm

Specifications

• Valve Type: EVR 15

• Function: Normally Closed (NC)

• Connection Type: Flare

• Connection Size: 5/8 inch (16 mm)

• Kv Value: 2.97 m³/h (≈ 3.47 gal/min)

• Max Working Pressure: 45.2 bar (655 psi)

• Medium Temperature Range: –40°C to +105°C

• Ambient Temperature Range: –40°C to +80°C

• Orifice Size: 14 mm

• Actuator System: 13.5 mm servo diaphragm

• Manual Operation: Not available

• Body Material: Brass

• Approvals: UL, EAC, VDE, RoHS compliant (with exemptions)

Refrigerant Compatibility

Supports a wide range of refrigerants, including:

• R134a, R404A, R407C, R410A, R448A, R449A, R452A, R513A

• R1234yf, R454A, R455A, R32, and many more

Applications

• Commercial refrigeration systems

• Air conditioning units

• Heat pumps

• Ventilation systems
