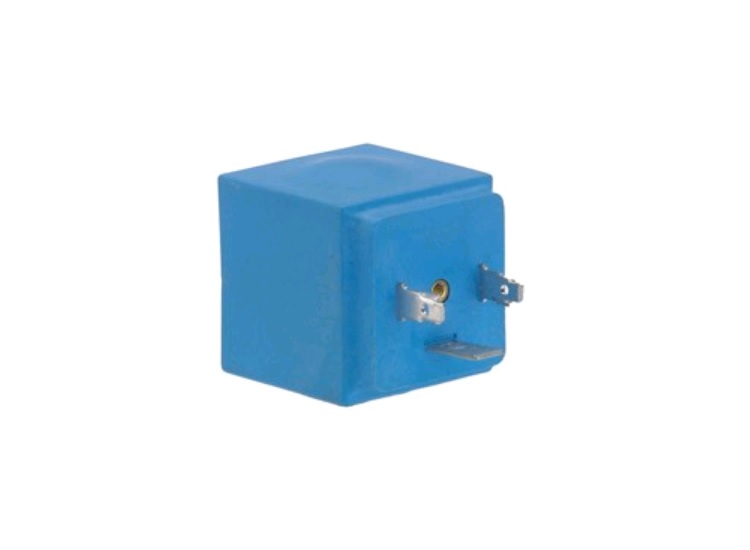

Solenoid coil Danfoss AS240CS 240V 50/60Hz 042N7602

Gross weight: 0.12 kg
Net weight: 0.11 kg
EAN: 5702428027380
Actuator size: 9 mm
Ambient temperature range [°C] [Max]: 50°C
Ambient temperature range [°C] [Min]: -40°C
Ambient Temperature Range [°F] [Max]: 122°F
Ambient Temperature Range [°F] [Min]: -40°F
Approval: LLC CDC GERMAN
Coil connection: DIN Spade
Coil attachment: Clip-on
The color blue
Compliance: EN 60730-1
Electrical connection: DIN Spade
Electrical connection size: 6.3mm x 0.8mm
Electrical connection standard: EN175301-803
Electrical connector: 3 x spades
Protection class IP: IP00
Frequency [Hz]: 50/60 Hz
Packaging format: Multi-pack
Parts Program name: EV220W
Power consumption 50Hz [VA]: 13 VA
Power consumption 60Hz [VA]: 10 VA
Power consumption [W] 50Hz: 6.5 W
Power consumption [W] 60Hz: 5 W
Product accessories: Accessories for solenoid valves
Product group: Solenoid valves
Product Name: Solenoid Coil
Rail. Humidity [% RH] [Max]: 97%
Rail. Humidity [% RH] [Min]: 0%
Rail. Humidity conditions: Non-condensing
Service friendly: No
Spare part number: 042N7602
Supply voltage 50Hz Max [V]: 240 V.
Supply voltage 60Hz Max [V]: 240 V.
Supply voltage [V] AC: 240 V
Type: AS240CS
Type designation: AS240CS
