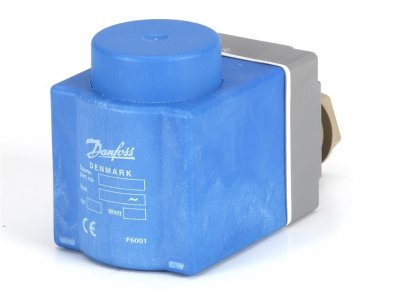

Solenoid coil BE240AS 11W 240V 50Hz Danfoss 018F6702

Gross weight: 0.35 kg
Net weight: 0.32 kg
EAN 5702428519137
BE240AS
Part program name: EV210B
EV212B
EV220B 15 - 50
EV220B 6 - 22
EV220B 65 - 100
EV222B
EV224B
EV227B
EV250B
EV251B
El. connection size Page: 13.5
Electrical connection: Terminal box
Energy consumption 50 Hz [VA]: 19 VA
Energy consumption 50 Hz [W]: 11 W
Frequency [Hz]: 50 Hz
Color: Blue
Attachment of coil: Clip-on
Approval: LLC CDC GERMAN
Identical product: 018F8702
Switch-on time: Continuous
Cable diameter [mm] [Max]: 11 mm
Cable diameter [mm] [Min]: 6 mm
Degree of protection IP: IP67
Conductor area [mm2]: 0.75 - 1.5 mm2
Supply voltage [V]: AC 240 V
Ambient temperature range [°C] [Max]: 80°C
Ambient temperature range [°C] [Min]: -40°C
Ambient Temperature Range [°F] [Max]: 175°F
Ambient Temperature Range [°F] [Min]: -40°F
Product group: Solenoid valves
Product Name: Solenoid Valve Coil
Product accessories: Solenoid valve coil, accessories
Rail. humidity [% RH] [Max]: 100%
Rail. humidity [% RH] [Min]: 0%
Spare part number: 018F6177
Serviceable: No
Flush connection: Electrical cabinet
Coil design, standard: VDE 0580
Coil winding, insulation class: Class H according to IEC 85
Power supply 50 Hz, Max [V]: 240 V
Actuator size: 13.5 mm
Compliance EN 60730-1
