Compatible refrigerantsR-22, R-134a, R-404A, R-407C, R-507A

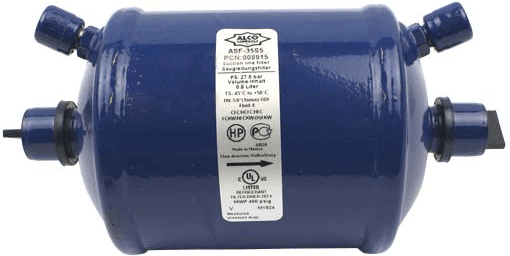

FunctionHermetic filter dryer for suction line
Connection 5/8" (16 mm) ODF
Flow directionUniflow
Conformity assessment categorySEP
Minimal pressure loss thanks to the internal construction with compressed balls
Easy to service with 2 Schrader valves for pressure loss measurement
ODF copper terminals for easy brazing connection
Filtration up to 40 microns
Rust-resistant epoxy paint
Average temperature TS: -45…+50°C
Max. permissible pressure PS: 27.5 bar (g)
No CE marking according to Art. 3.3 PED 97/23 EC
