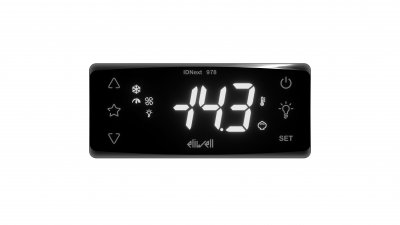

Thermostat Eliwell ID NEXT 978 P/CI 230V

IDN978P3D527000
Operating temperature: -5 to 55°C
Storage temperature: -30 to 85°C
Power supply: 230V ac
Power consumption: 5.5 VA
Display range: -99.9 to + 99.9°C or -999 to + 999°C
Analog inputs: 2x PTC or NTC or Pt1000
Digital inputs: 1x SELV
Digital outputs 1x O.C. VSC: 16Vdc (min. 1500ohm)
1x SPDT 0.5Hp 8 (4) A 230V ac
1x SPST 1.5Hk 10 (6) A 230V ac
1x SPST 5 (2) A 230V ac
Display: LED 3 numbers + characters
Measuring range NTC: -50.0 to + 110.0°C
PTC: -55.0 to + 140.0°C
Pt1000: -55.0 to + 150.0°C
Connectivity: TTL port for connection to Unicard or TelevisSystemModBus monitoring unit
Serial ports: 1x TTL
Accessories: Unicard USB / TTL
Dongle BTLE / TTL
Features: Simple map, real time clock, variable speed compressor
Weight: 170g
Width: 81mm
Height: 35mm
Depth: 60mm
Installation panel: 71x29mm
