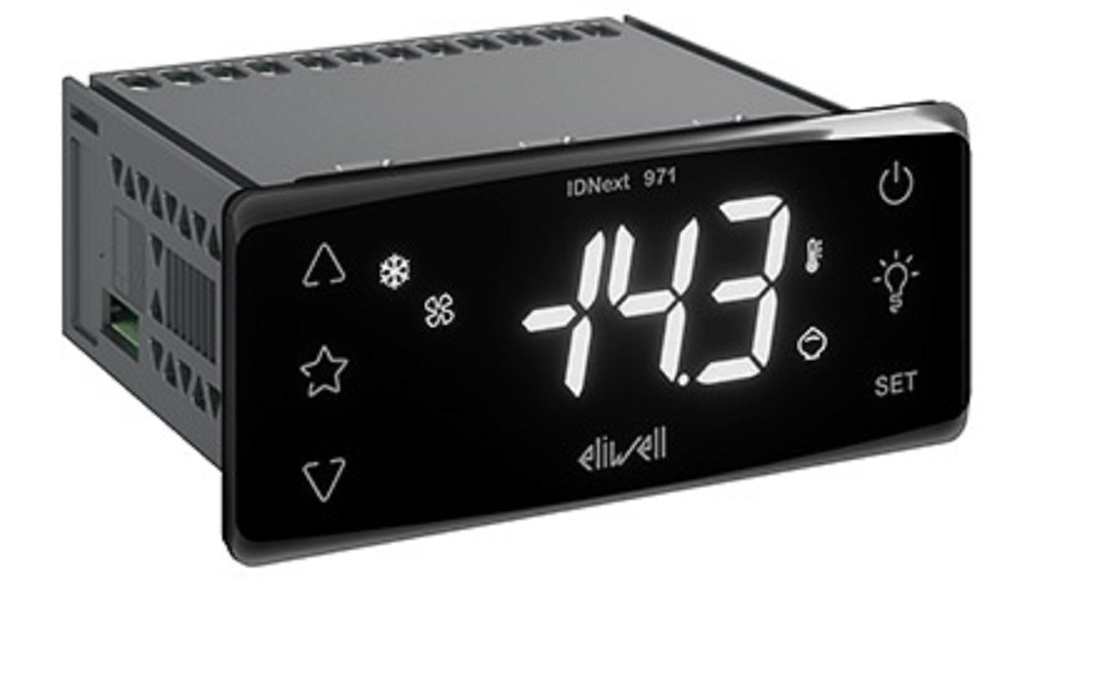

Thermostat Eliwell ID NEXT 971 P/B 230V 50/60Hz

Eliwell ID NEXT 971 P/B 230V 50/60Hz Model Number: IDN971P9D307000

Temperature:

• Operating Temperature: -5 to 55°C

• Storage Temperature: -30 to 85°C

• Display Range: -99.9 to +99.9°C or -999 to +999°C

Power Supply & Consumption:

• Voltage: 230V AC

• Power Consumption: 5.5 VA

Analog Inputs:

• 2x PTC or NTC or Pt1000

Digital Inputs:

• 1x SELV

Digital Outputs:

• 1x SPST 2Hp 12 (8) A 230V AC

• 1x SPDT 0.5Hp 8 (4) A 230V AC

Display:

• LED, 3 digits + symbols

Measurement Range:

• NTC: -50.0 to +110.0°C

• PTC: -55.0 to +140.0°C

• Pt1000: -55.0 to +150.0°C

Communication & Connections:

• TTL port for connection to Unicard or TelevisSystem ModBus

• Serial Ports: 1x TTL

Accessories & Dongle:

• Unicard USB / TTL

• BTLE / TTL

Features:

• Simple map

• Buzzer

Physical Dimensions & Weight:

• Weight: 185g

• Width: 81mm

• Height: 35mm

• Depth: 60mm

• Installation Panel: 71x29mm
