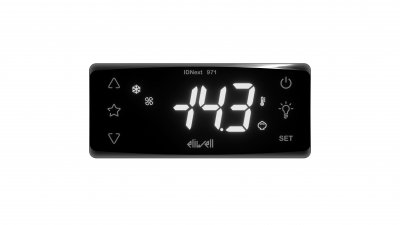

Thermostat Eliwell ID NEXT 971 P/B 12V AC/DC

IDN971P9D303000
Operating temperature: -5 to 55°C
Storage temperature: -30 to 85°C
Power supply: 12 V ac-dc
Power consumption: 5 VA - 2.5W
Display range: -99.9 to + 99.9°C or -999 to + 999°C
Analog inputs: 2x PTC or NTC or Pt1000
Digital inputs: 1x SELV
Digital outputs: 1x SPST 2Hp 12 (8) A 230Vac
1x SPDT 0.5Hp 8 (4) A 230Vac
Display: LED 3 numbers + characters
Measuring range NTC: -50.0 to + 110.0°C
PTC: -55.0 to + 140.0°C
Pt1000: -55.0 to + 150.0°C
Accuracy NTC: better than 0.5% of full scale + 1 digit
Connectivity: TTL port for connection to Unicard or TelevisSystemModBus monitoring unit
Serial ports: 1x TTL
Accessories: Unicard USB / TTL
Dongle: BTLE / TTL
Weight: 185g
Width: 81mm
Height: 35mm
Depth: 60mm
Installation panel: 71x29mm
