Gross weight: 4 kg
Net weight: 3.09 kg
EAN: 5702428108454

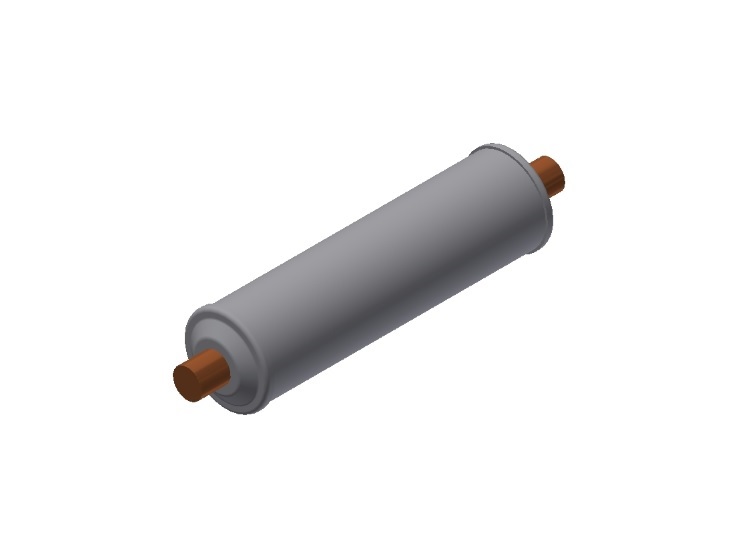

ELIMINATOR
DML 759S
Active alum./molecular filter [%]: 0% / 100%
Connection material: Copper-plated steel
Flow group: II
Fluency. which. (ARI 710-2009)[IMP]: Delta p=1psi
tliq= 86°F
soap=5°F
Flow capacity KW: R290: --
R134a: 98.6
R32: 150.3
R404A: 69.4
R407C: 101.1
R410A: 102.6
R507: 67.3
Flow capacity TR: R134a: 28.0
R290: --
R32: 42.7
R404A: 19.7
R407C: 28.7
R410A: 29.2
R507: 19.1
Flow direction indicator: Label printed 1-way arrow
Mount: No
Approval: UL
Housing material: Steel
Case Volume [foz US]: 61.49 oz
Housing volume [l]: 1.82 L
Input, connection size [mm]: 28 mm
Inlet connection type: Soldering, ODF
Insert size: 75 cu.in.
Category: Art. 3, par. 3
Compatibility refrigerant oil: Oil-free applications
R1234ze(E)
R134a
R513A
R515A
Core: Solid core
Refrigerant R125
R134a
R22/R407C
R23
R404A
R407A
R407F
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R452A
R455A
R507A
R513A
Solid core, volume [cm3]: 711 cm³
Solid core, volume [in3]: 43.37 in³
Solid core, surface area [cm2]: 829 cm²
Solid core, surface area [in2]: 128.53 in²
Max. Working pressure [bar]: 46 bar
Max. Working pressure [psig]: 667 psig
Net Volume [foz US]: 37.46 oz
Net volume [litres]: 1.108 L
Oil-free refrigerants: R1234ze(E)
R134a
R513A
R515A
Product description: Drier filter for liquid line
Product family name: DML
Product group: Dryer filter
Product name: Hermetic filter drier
Serviceable: No
Lubricant compatibility: Oil-free applications
Specification key: DML 759S
Acid capacity [g]: 6.55 g
Acid Capacity [oz]: 0.231 oz
Temperature range [°C] [Max]: 70 °C
Temperature range [°C] [Min]: -40 °C
Temperature Range [°F] [Max]: 160°F
Temperature Range [°F] [Min]: -40°F
Dry cap.[water droplets]24 °C: R134a: 3043
R290: --
R32: --
R404A: 3170
R407C: 2955
R410A: 2755
R507: 3320
Dry hood.[water droplets]52 °C R134a: 2786
R290: --
R32: --
R404A: 3003
R407C: 2724
R410A: 2450
R507: 2987
UL approval file number: SA6398
UL approved refrigerants: R125
R134a
R22
R23
R404A
R407A
R407C
R407F
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R452A
R507A
R513A
Output connection, size [mm]: 28 mm
Outlet connection type: Soldering, ODF
Fluid retention. which. (ARI 710-2009)[SI]: Delta pressure = 0.07 bar
tliq= 30°C
soap=-15°C
