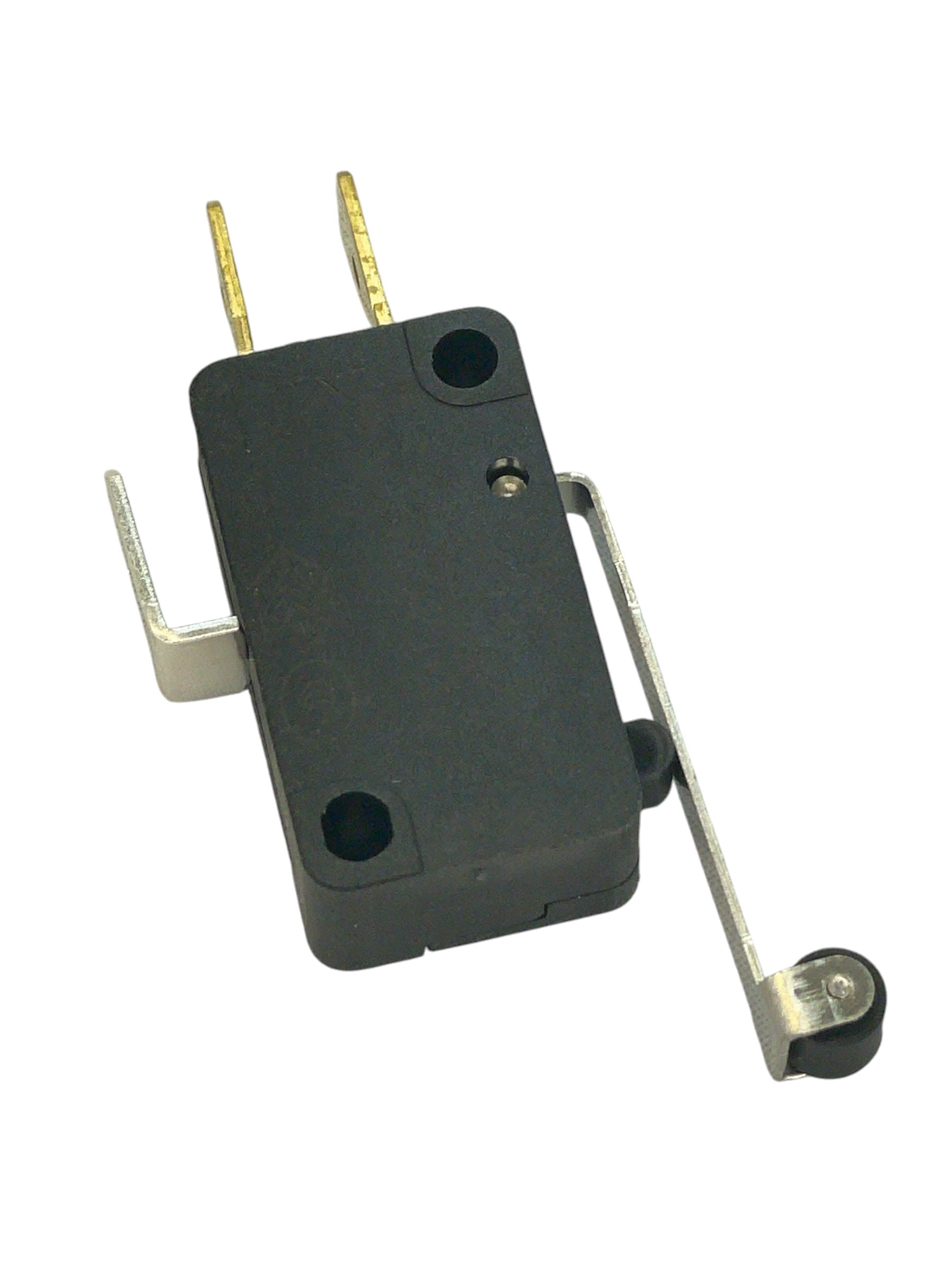

Microswitch Omron D3V-166-1C5 (1NO + 1NC 16A 250V)

Manufacturer: OMRON Electronic Components

Switch type: microswitch SNAP ACTION

Contact load capacity AC: 16A / 250V AC

Contact capacity DC: 10A / 30V DC

Switch characteristics: with rocker (with roller)

Contact configuration: SPDT

Max contact resistance: 30mΩ

Switch function: ON-(ON)

Number of all positions: 2

Manufacturer's series: D3V

Number of stable modes: 1

Protection class: IP40

Terminals: contact pin 6.3x0.8mm

Housing dimensions: 27.8x10.3x15.9mm

Mechanical life: 10000000 cycles

Working temperature: -25...105°C

Torque: 1.96N

Rocker length: 25.5mm

Electrical life: 100000 cycles

Contact coating: silver-plated

My. insulation resistance: 0.1GΩ
