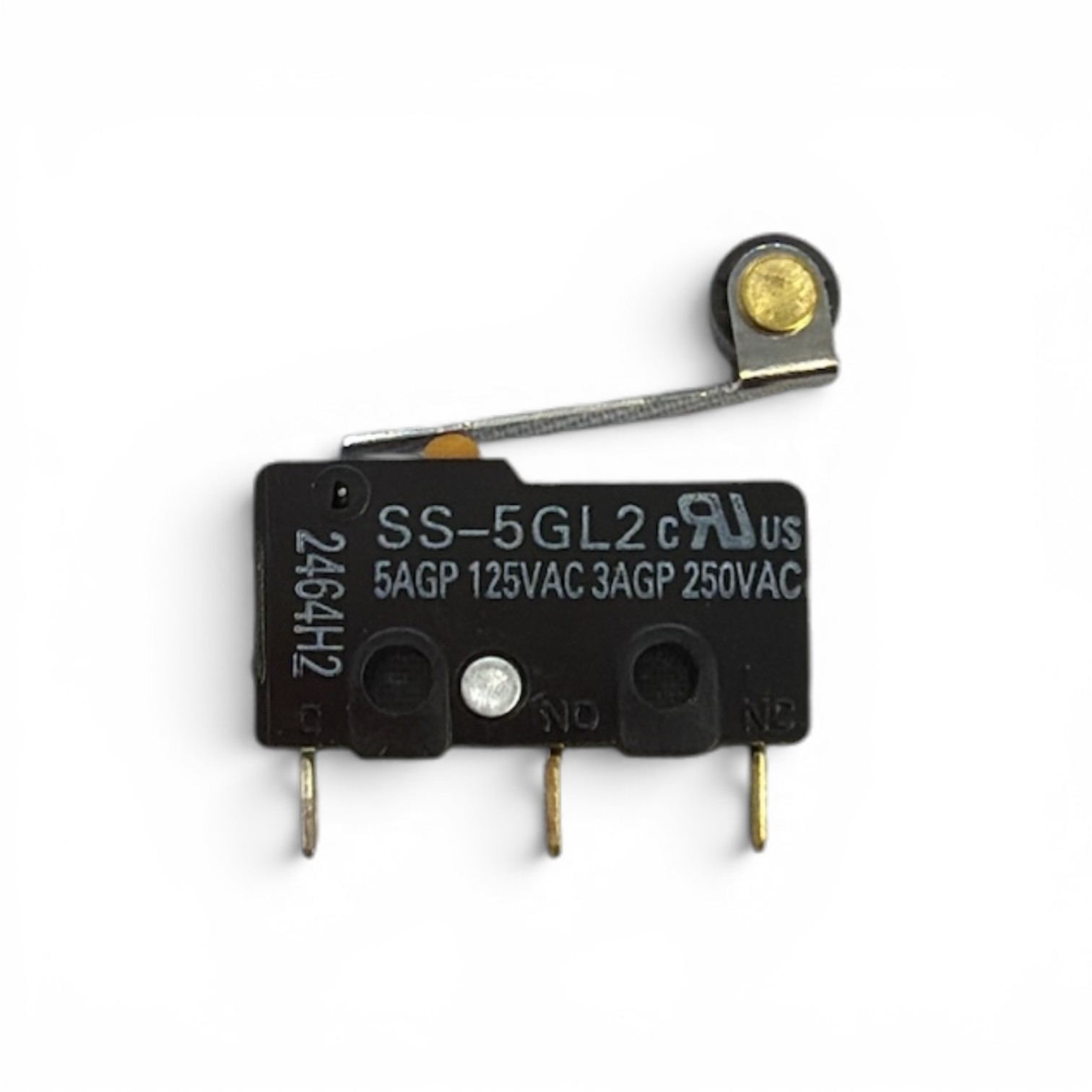

Micro switch with lever (with roller), SPDT, Pos: 2
SS-5GL2
€ 7,30
Excl. VAT
Art: SS-5GL2
I lager - snabb leverans
Product specifications
Width: 6.4mm
Length: 19.8mm
Height: 10.2mm
Activation force: 1.47N
Microswitch type: Subminiature
Enclosure class: IP40
Contact configuration: 1CO
Termination type: Solder connection
Contact voltage - 125VAC
Contact current - AC 5A
Contact material: Silver
Series: SS
Switching function: ON-ON
Actuator type: Hinged roller lever
Minimum operating temperature: -25°C
Maximum operating temperature: +85°C
Estimated lifespan: 30,000,000 bends
Width: 6.4mm
Length: 19.8mm
Height: 10.2mm
Activation force: 1.47N
Microswitch type: Subminiature
Enclosure class: IP40
Contact configuration: 1CO
Termination type: Solder connection
Contact voltage - 125VAC
Contact current - AC 5A
Contact material: Silver
Series: SS
Switching function: ON-ON
Actuator type: Hinged roller lever
Minimum operating temperature: -25°C
Maximum operating temperature: +85°C
Estimated lifespan: 30,000,000 bends
