Emergency signal button SCB4DL 12V

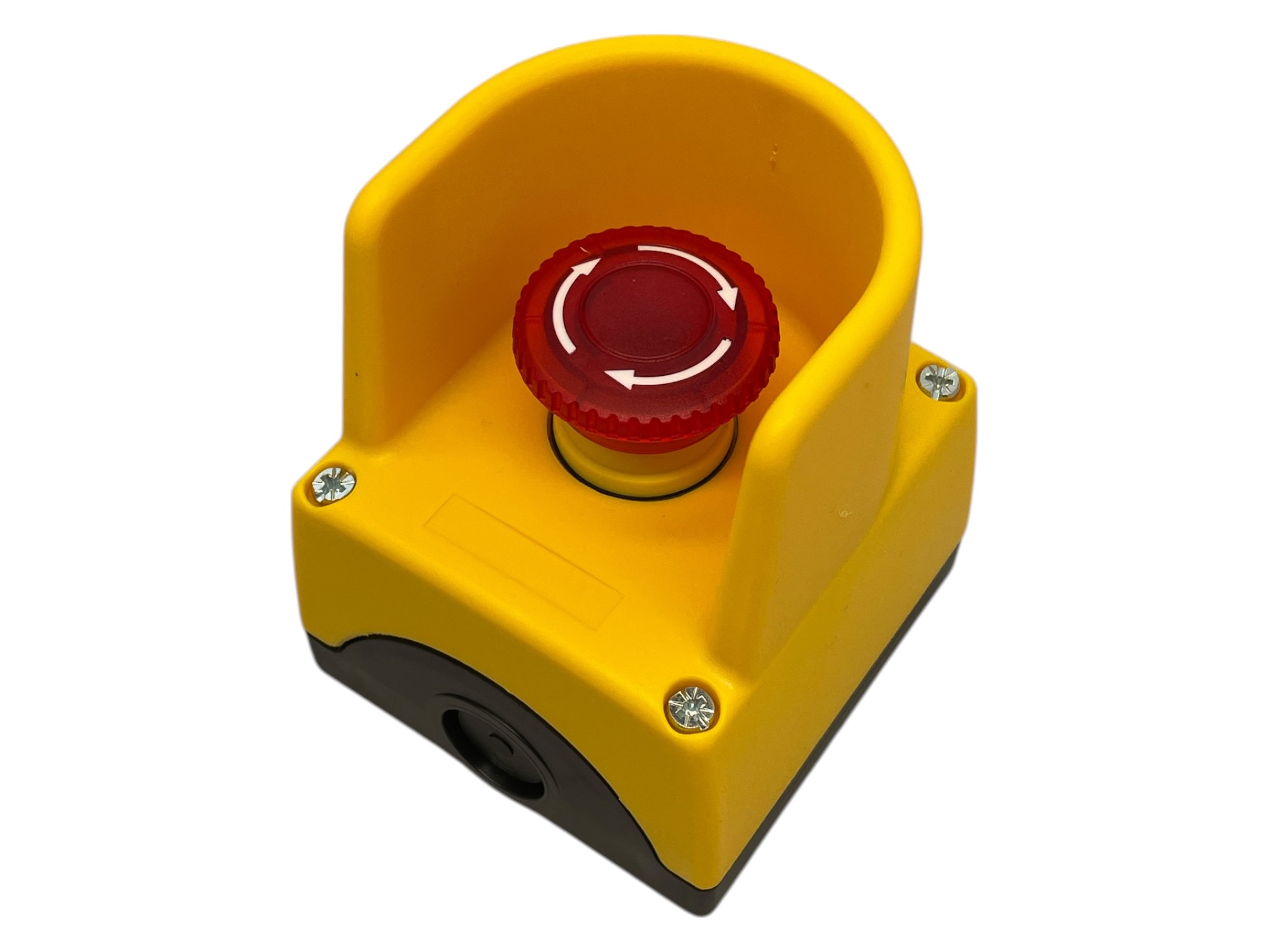

SCB 4 DL is an illuminated mushroom push button intended to operate our lockout alarm, SCA 1 AL.

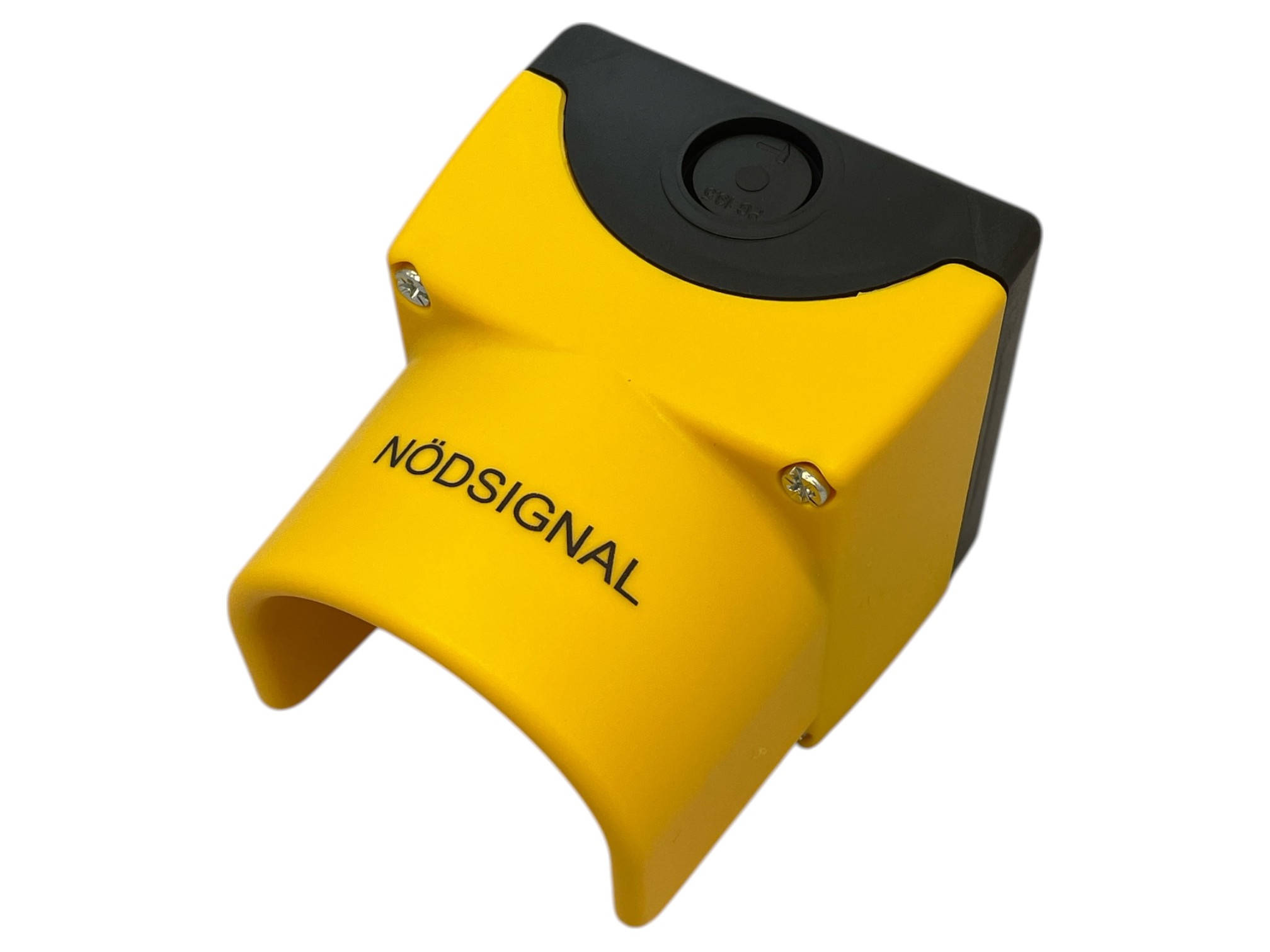

The button has a sturdy plastic cover that protects the mushroom push button against impacts and shocks. It is well suited for use in harsh environments.

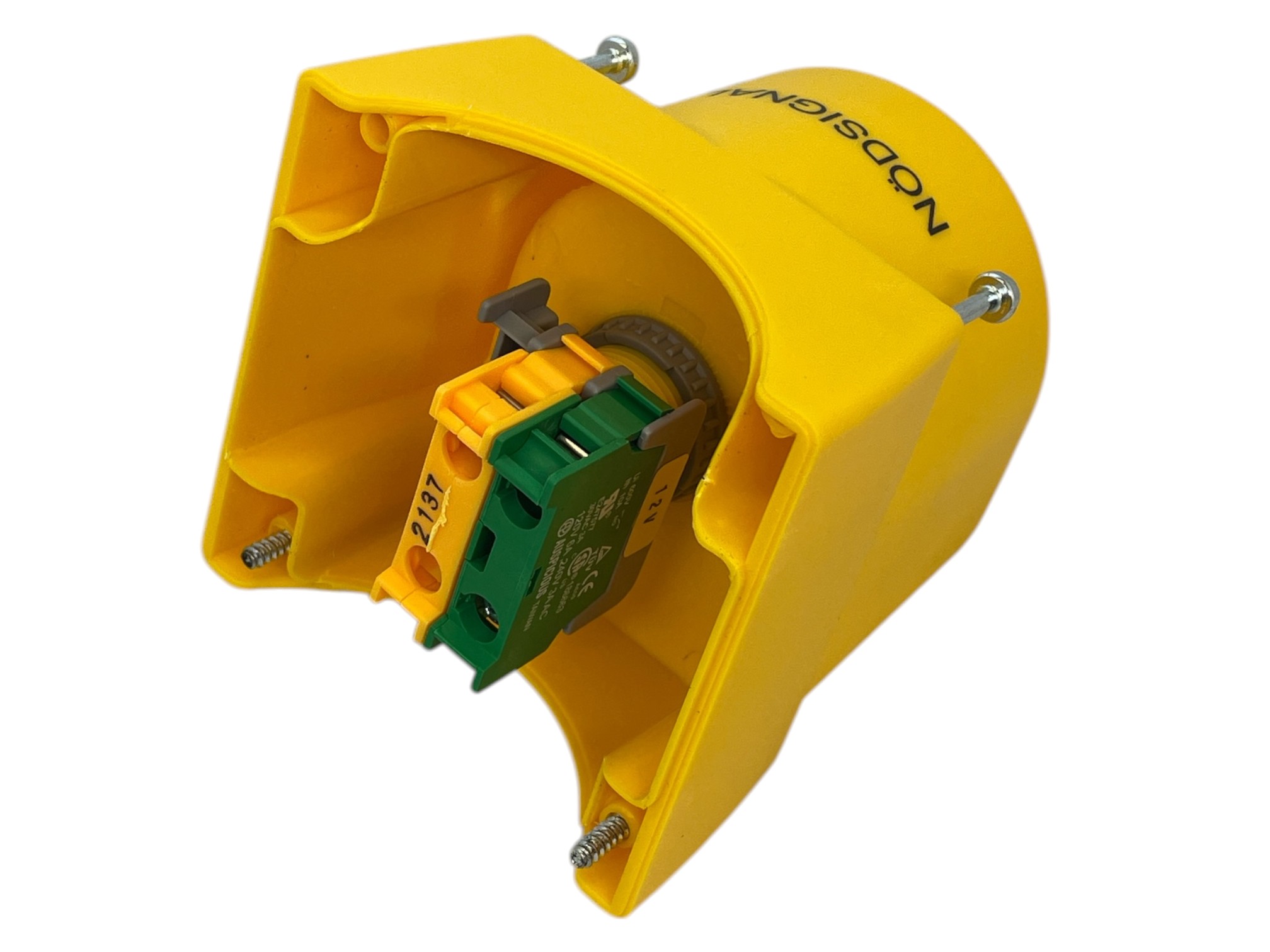

SCB 4 DL consists of a push button, a closing contact and an LED indicator mounted in a plastic housing.

Can also be supplied as a general emergency stop button with breaking function.

• Illuminated mushroom push button.

• Push button locks in pressed position.

• Resets with a clockwise turn.

• Size: 86 x 85 x 108

• Closing contact.

• 12V LED, 14mA.

• Brightness 10-12cd.

• Yellow lid, red button.

• Strong protective plastic cover.

• -25°C <-> +60°C
