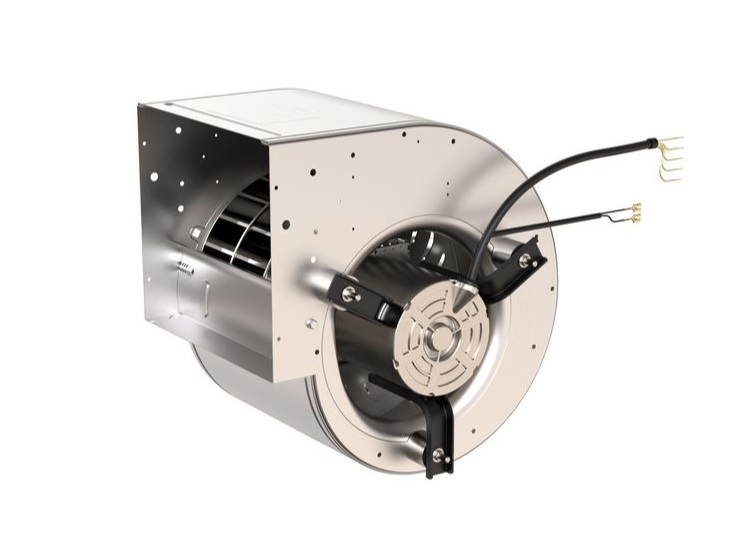

Fan motor Nicotra DDM 146/190 160W 7725C2 1F 2P 1V+FL ( 6102YU/04 )
9550103
€ 726,21
Excl. VAT
Art: 9550103
Order item - slightly longer delivery time
Nicotra DDM 146/190
160W
7725C2 1F 2P 1V+FL ( 6102YU/04 )
Fits, among others, KylCity Refrigeration Cabinet CN-40/90
Speed: 2200 rpm
Curves: [D3/D4]
Motor Thermal Class: F
Thermal Protection: EXT
Media Temperature Maximum: 40 Degree C
Fan Weight: 7kg
Density of Media: 1.2 kg/m3
Installation Type: B (ISO 5801)
Model Number: DDM 146/190 7725C2
Speed Control: (1)
Mains Frequency: 50/60Hz
Poles: 2
Phases: 1-
Maximum Power Consumption: 326W
Maximum Current Consumption: 1.4A
Operating Capacitor: 10 Microfarad
Nominal Capacitor Voltage: 450V
Motor Protection Class: IP32
