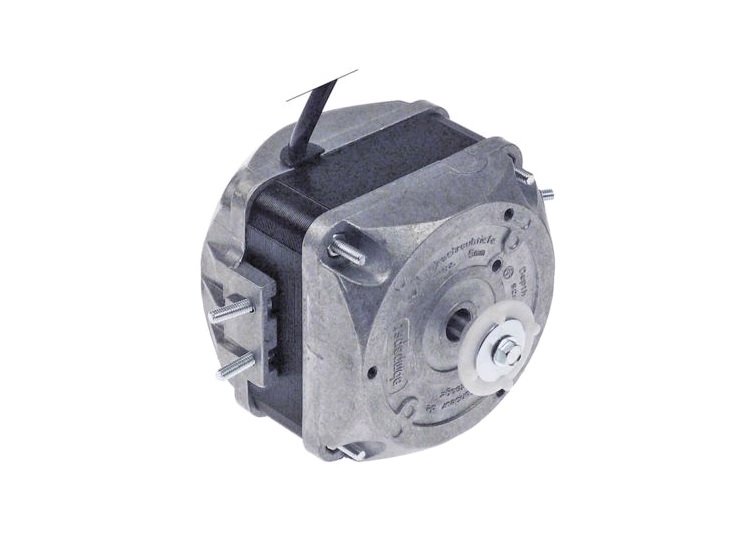

Fan motor Ebm-Papst M4Q045-CF01-75 16W (230V)

Nominal output power: 16.0 W

Description: Q-motors Multi-function design

Voltage: 1~230VAC

Frequency: 50Hz / 60Hz

Power: 60W

Rated current: 0.42 A

Speed: 1300 rpm

Temperature range: -30…+40 °C

Blowing direction: Universal depending on the wing

Direction of rotation: Counterclockwise viewed from the drive shaft

Motor: Screen pole motor

Engine designation: M4Q045-CF01-75

Motor protection / Protection: Integrated locked rotor protection

Enclosure class: IP42

Motor insulation class: B

Bearing type: Plain bearing

Fan wheel: Aluminum (fan blades ordered separately)

Mounting position: Optional

Electrical connection: Cable length 1500 mm

Size Fan wheel diameter: 254 mm

Weight: 1.3 kg
