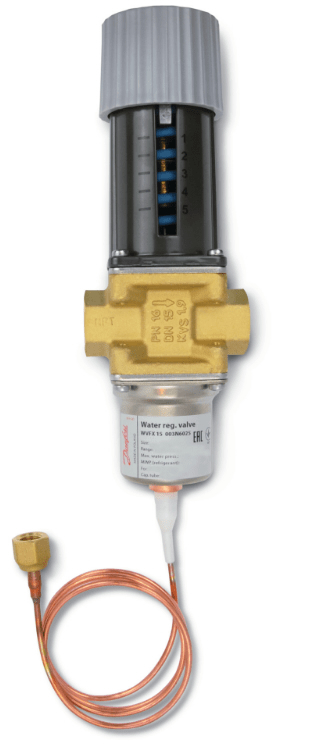

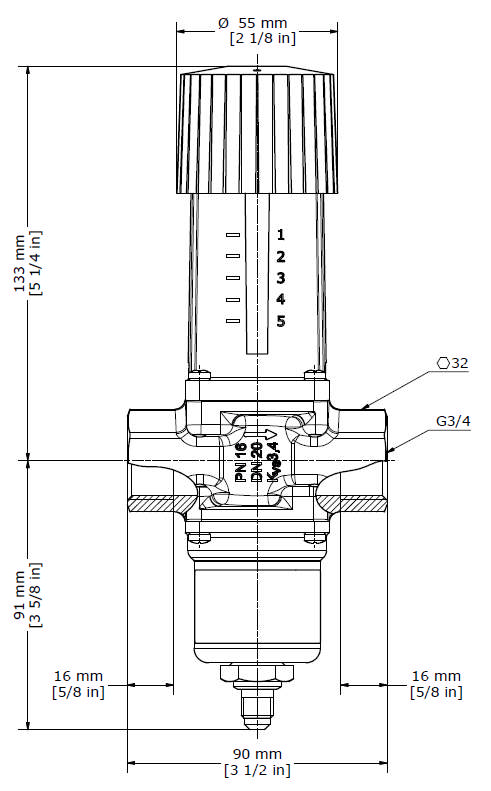

Water valve WVFX20 Danfoss 003N3105 3/4"
003N3105
€ 458,98
Excl. VAT
Art: 003N3105
I lager - snabb leverans
Product information
| Gross weight | 1.406 Kg |
| Net weight | 1.225 Kg |
| Volume | 4.03 Liters |
| EAN | 5702422035886 |
| Connection size (refrigerant) | 1/4 in - 6 mm |
| Connection type (refrigerant) | SAE flare |
| Connection internal/external | Internal |
| Connection, standard | ISO 228-1 |
| Connection size [in] | 3/4 |
| Connection type | G |
| Quantity per packaging format | 10 quantity |
| China RoHS compliance | Yes |
| Differential pressure [bar] | 10 bar |
| Differential pressure [psi] | 145psi |
| Nozzle size [mm] | 20mm |
| Nozzle size, fraction [inch] | 4/5 in |
| EU RoHS compliant | Yes with exemptions |
| EU RoHS exemption clause | 6(b), 6(c) |
| Packaging format | Multipack |
| Approval | C UL US-LISTED EAC LLC CDC GERMAN PED RoHS RoHS China |
| Approvals | REFRIGERANT VALVE 53R0 |
| House materials | Brass |
| In scope of WEEE and contain batteries | No |
| Kv value [gal/min] | 3.9 gal/min |
| Kv value [m³/h] | 3.4 m³/h |
| Refrigerant | R134a R22 R404A R407A R407C R407F R422B R422D R448A R449A R450A R452A R507A R513A R407H R449B R454C R455A R515B R516A R1234yf R454A |
| Max. working pressure (refrigerant) [bar] | 26.4 bar |
| Max. working pressure [bar] | 16 bars |
| Max. Working Pressure [psig] | 232 psi |
| Max. test pressure (cooling) [bar] | 29 bars |
| Max. test pressure (refrig.)[psig] | 420.6 psig |
| Max. test pressure [bar] Pe | 24 bars |
| Max. test pressure [psig] | 348 psi |
| Media temperature range [°C] [Max] | 130°C |
| Media temperature range [°C] [Min] | -25 °C |
| Media Temperature Range [°F] [Max] | 266 °F |
| Media temperature range [°F] [Min] | -13 °F |
| Medium | Freshwater Neutral salt water |
| Oil-free refrigerants | R513A |
| Product Name Description | Pressure-controlled water valve |
| Product group | Water regulating valves |
| Product accessories | General accessories Water valve, accessories |
| Regulation pressure, range [bar] [Max] | 23 bars |
| Regulation pressure, range [bar] [Min] | 4 bars |
| SCIP ID no. | f7d782f1-04df-4c40-bfe2-ea3a06dce79f |
| SCIP Document Product Name | WVS/WVTS |
| Serviceable | Water valve, spare parts |
| Lubricant compatibility | Oil-free applications |
| Type | WVFX 20 |
| UK RoHS compliant | Out of scope |
| UL-approved refrigerants | R134a R22 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R507A R513A R515B R516A |
| REACH candidate list substances | Lead (CAS no. 7439-92-1) |
| Opening configuration | Opens on rising condensing pressure |
