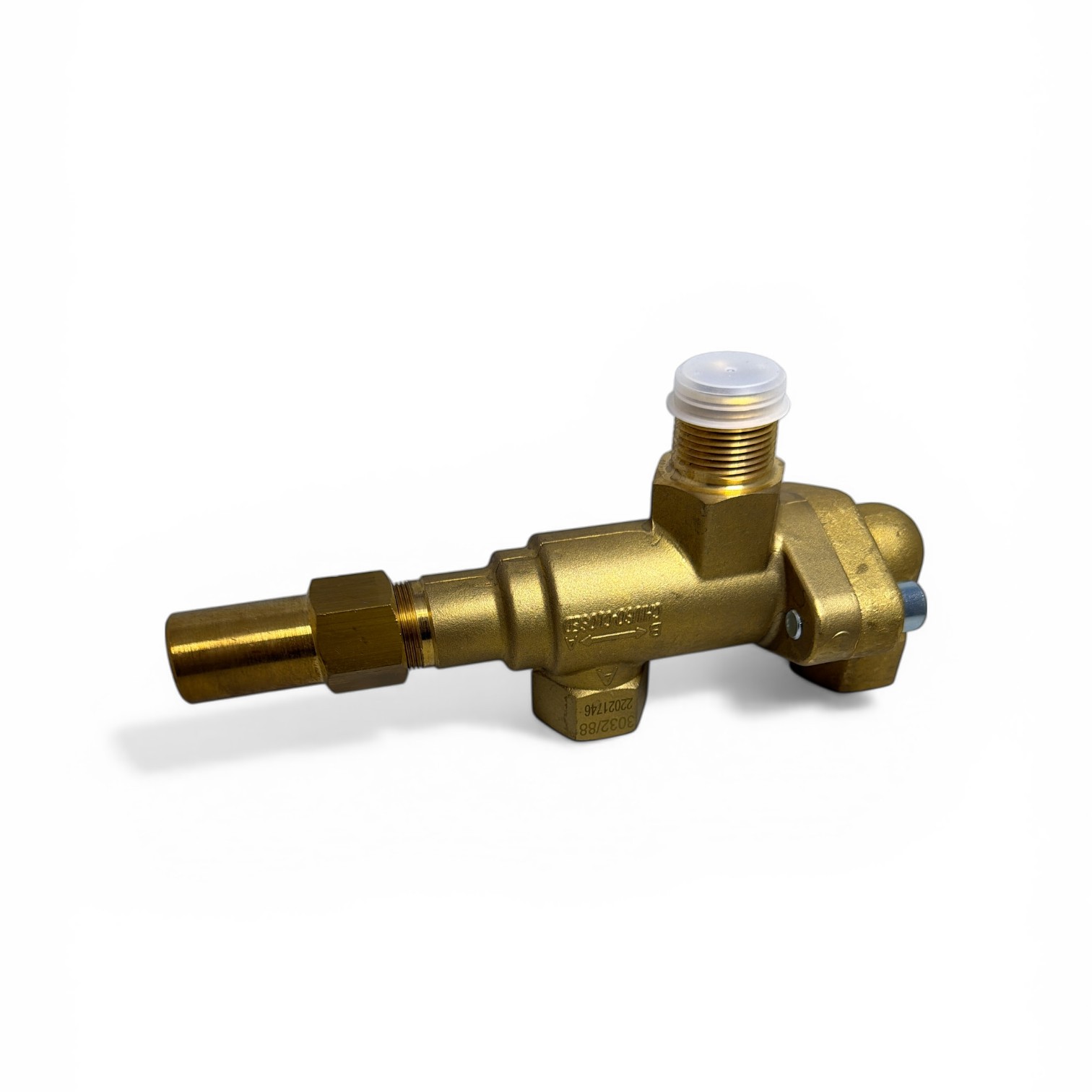

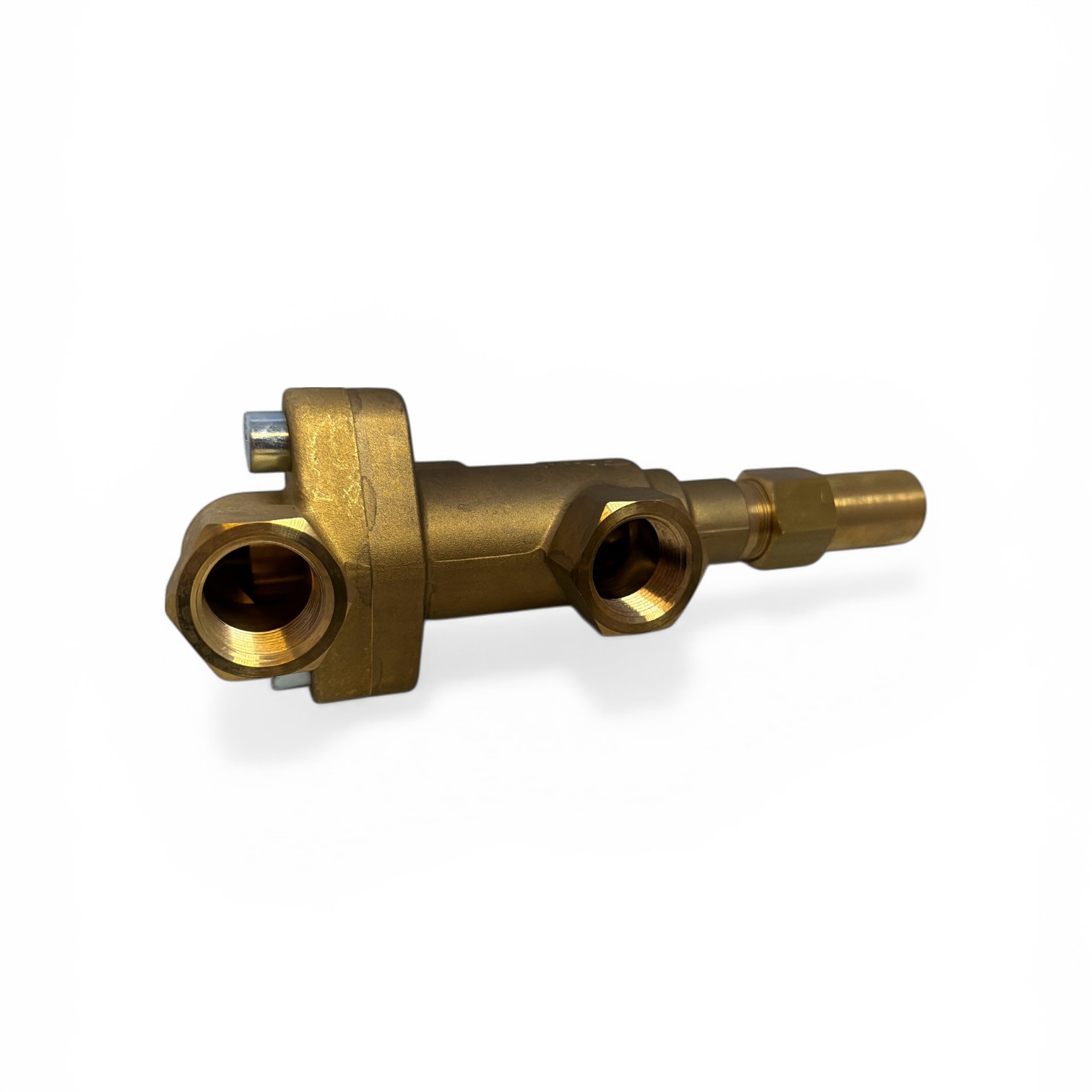

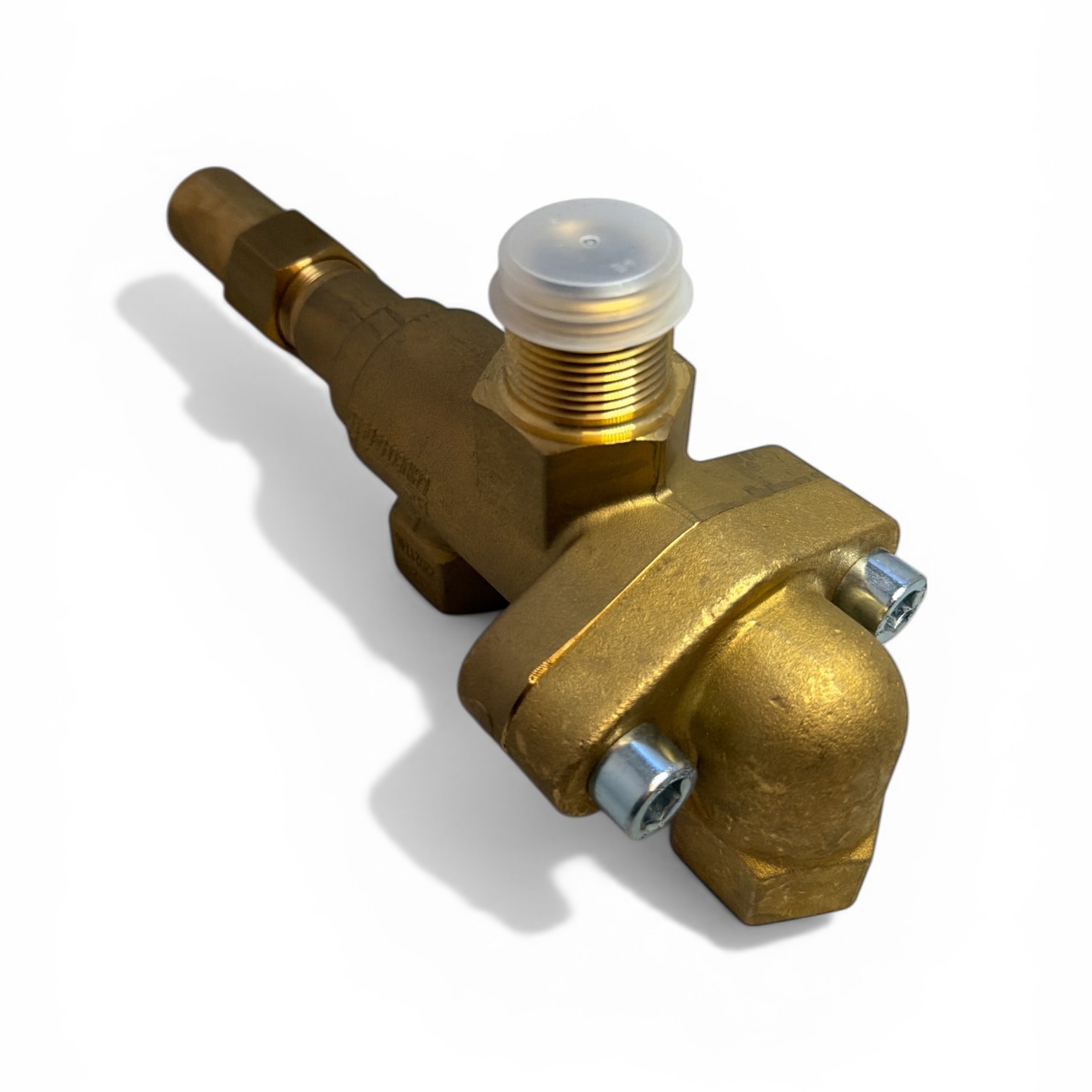

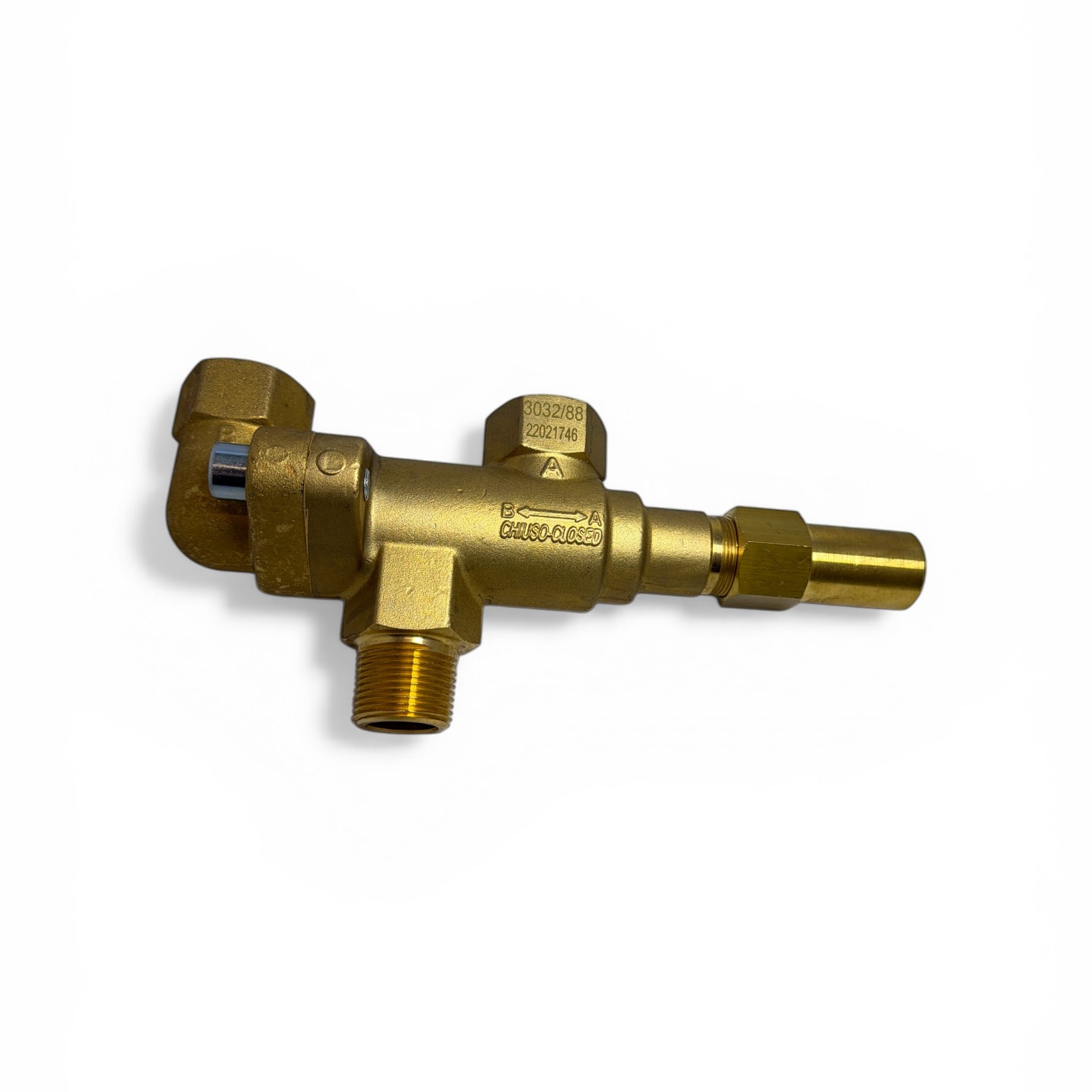

Castel S.R.L Gear rack 1'' NPT M - 2x1'' NPT F

Connections: -

Connections IN: 1" NPT

Connections OUT: 1" NPT

Kv [m³/h]: 14.5

PS [bar]: 80

MWP [psi] (1): 1015

TS [°C] min.: -40

TS [°C] max.: +120

Series 3032 diverter valves act as a service valve for a pair of safety valves, allowing one to be used and the other to be excluded. This arrangement allows the user to work on the isolated valve for periodic inspection or replacement, while the line remains fully operational and the system safety is integral.

Accessories for use with the following ASHRAE 34:2019 refrigerants, Class A1:

HCFCs (R22)

HFCs (R134a, R404A, R407C, R410A, R507)

HFO (R1234ze)

HFO + HFC (R448A, R449A, R450A, R452A, R513A, R515A, R515B)
