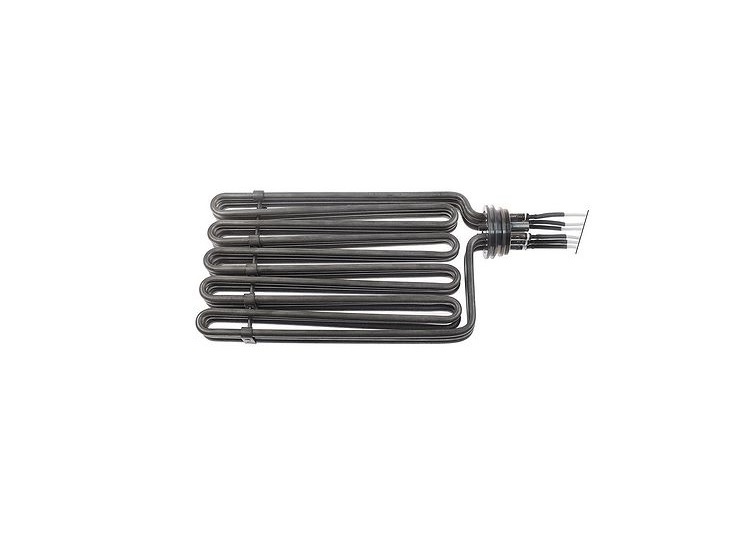

Heating element 12000W 230V L 315mm L1 15mm L2 300mm W1 30mm W2 33mm Connection Cables Pipe ø 85mm VK 3
531593
€ 868,86
Excl. VAT
Art: 531593
I lager - snabb leverans
12000W
230V
Length: 315mm
Length 1: 15mm
Length 2: 300mm
Width 1: 30mm
Width 2: 33mm
Connection: Cables
Tube diameter: 8.5 mm
Heating circuits: 3
Cable length: 515 mm
Height: 32mm
Width: 175mm
Number of thermostat sleeves: 2
Flange length: 26 mm
for O-ring diameter: 51/56 mm
Flange diameter 1: 62 mm
Thermostat sleeve position: top/bottom
Thermostat screw connection: M10x1
